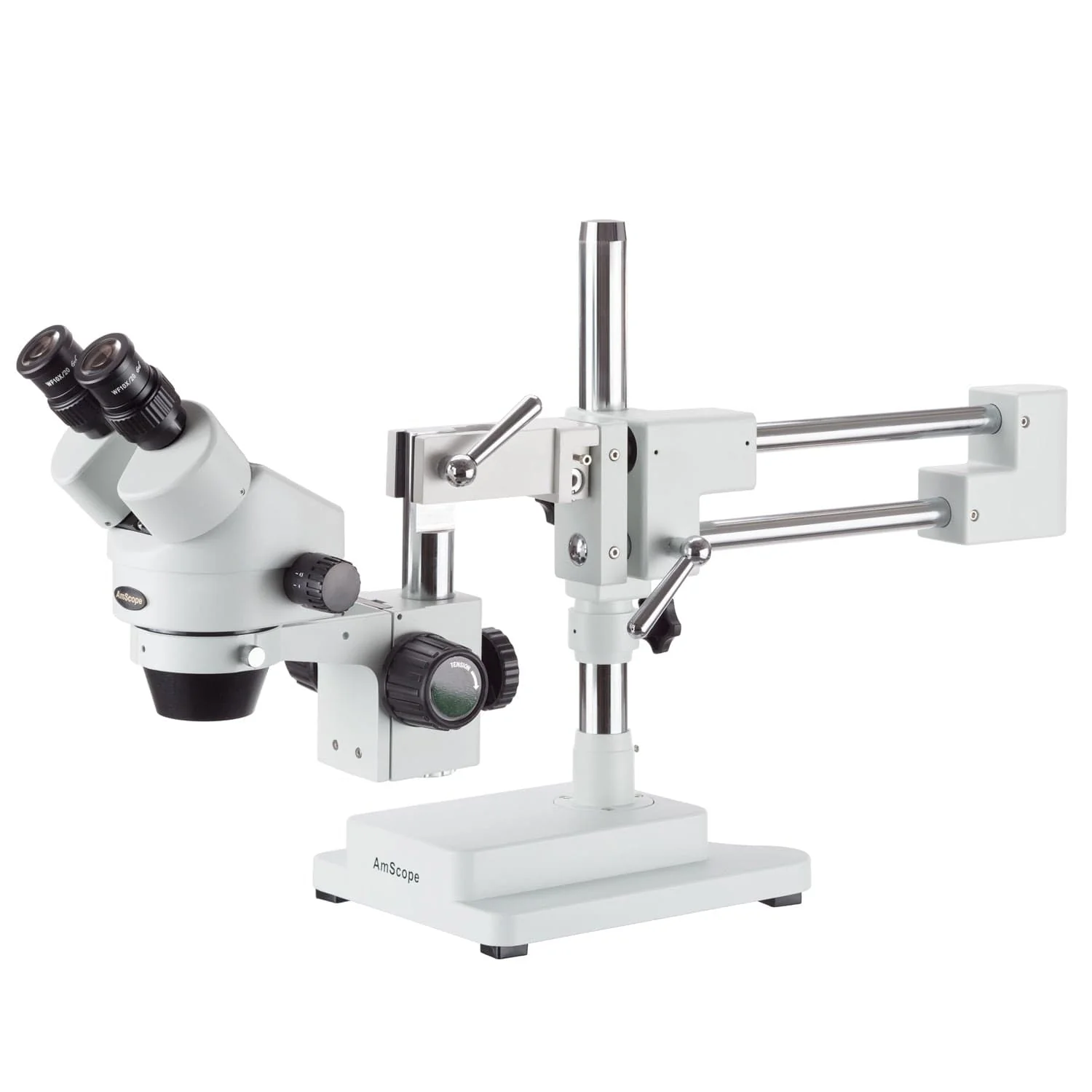

SM-4 Series Zoom Stereo Microscope 7X-45X Magnification on Double Arm Boom Stand

This is a 7X-45X zoom stereo microscope that gives crystal clear sharp images. It comes with a binocular head with 30mm super widefield, high-eyepoint 10X eyepieces and a double-arm heavy-duty boom stand. The 45 degree inclined and high-eyepoint design ensures an easy observation, especially for eyeglass wearers. The rubber eye-guards provide further comfort. The double-arm boom stand allows you to turn the microscope head around three different axes (x, y, and z), allowing you to point the microscope head toward to ANY direction. This microscope offers high resolution, super widefield of view, 6.5:1 magnifying zoom range and 4″ (100mm) working distance. It is an ideal instrument for research labs, gemologists, engravers, collectors and anyone in semiconductor and/or electronic industry.

Features :

• 7X-45X (6.5:1) Continuous Zoom Magnification Range
• 30mm Super Widefield 10X Eyepieces
• 4″ (100mm) Large Working Distance
• 45 Degree Inclined Head
• Crystal Clear Original True Color Images
• Erect Sharp Stereo Images over a Super Widefield of View
• High Resolution with Great Flatness and Contrast
• Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
• Both Ocular Tubes with Adjustable Diopters
• Adjustable Interpupillary Distance
• Full Optical Glass Elements
• Precise Ground Glass Lenses
• Versatile Boom Stand Covering Large Working Area
• Double-Arm Design for 3-Degree Freedom, Allowing Placing Microscope Head Toward to Any Direction
• Rugged Solid Cast Steel Base Finished with Stain Resistant Enamel
• All Metal Mechanical Components
• Rubber Eye-guards Included
• Manufactured under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Manufacturer Warranty

Specifications :

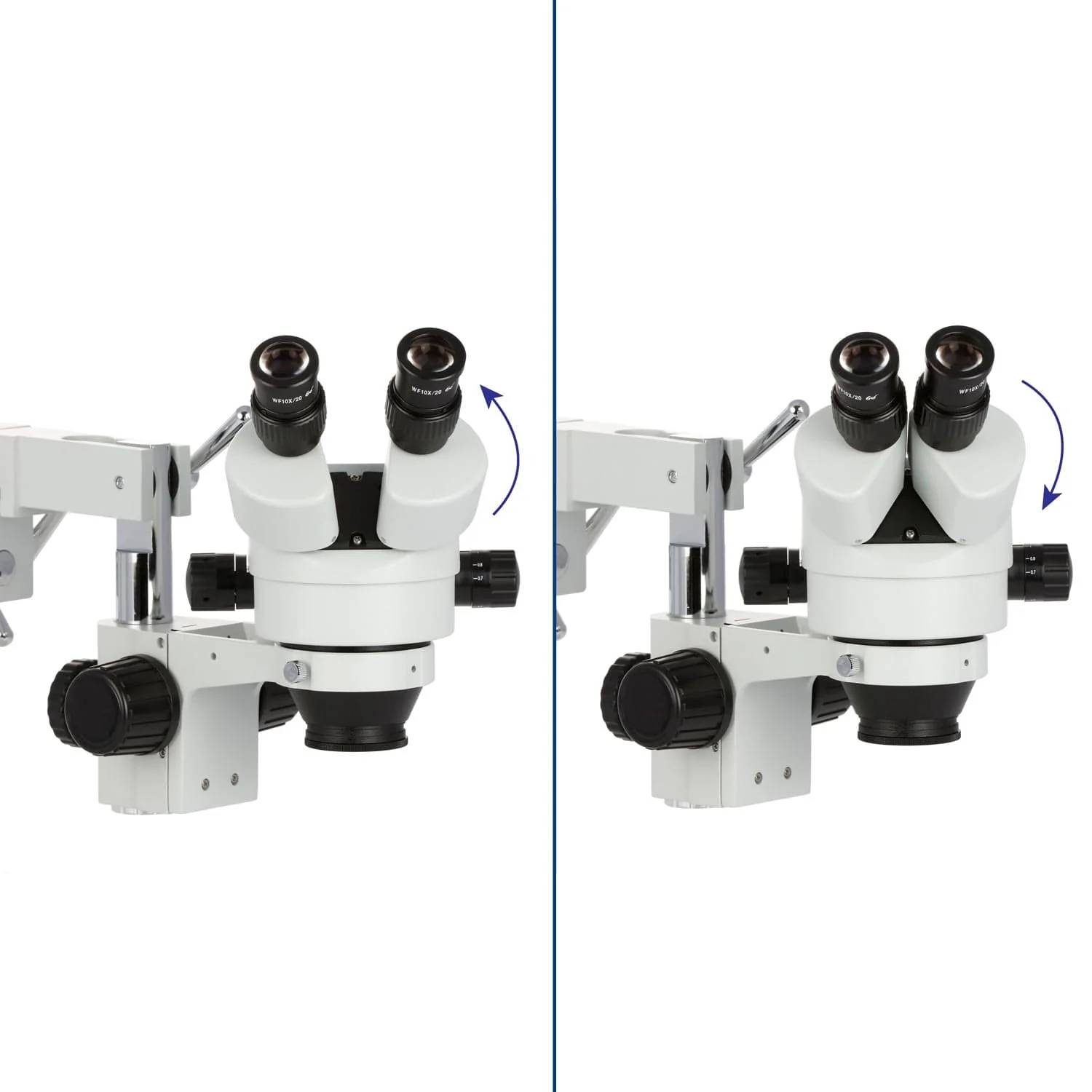

• Head: 45 degree inclined 360 degree swiveling
• Eyepieces: 30mm super widefield high-eyepoint WF10X/20
• Objective: 0.7-4.5X
• Zoom Range: 6.5:1
• Maximum Field of View: 1-1/4″ (33mm)
• Minimum Field of View: 3/16″ (4.75mm)
• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 2-3/16″ – 2-15/16″ (55-75mm)
• Working Distance: 4″ (100mm)

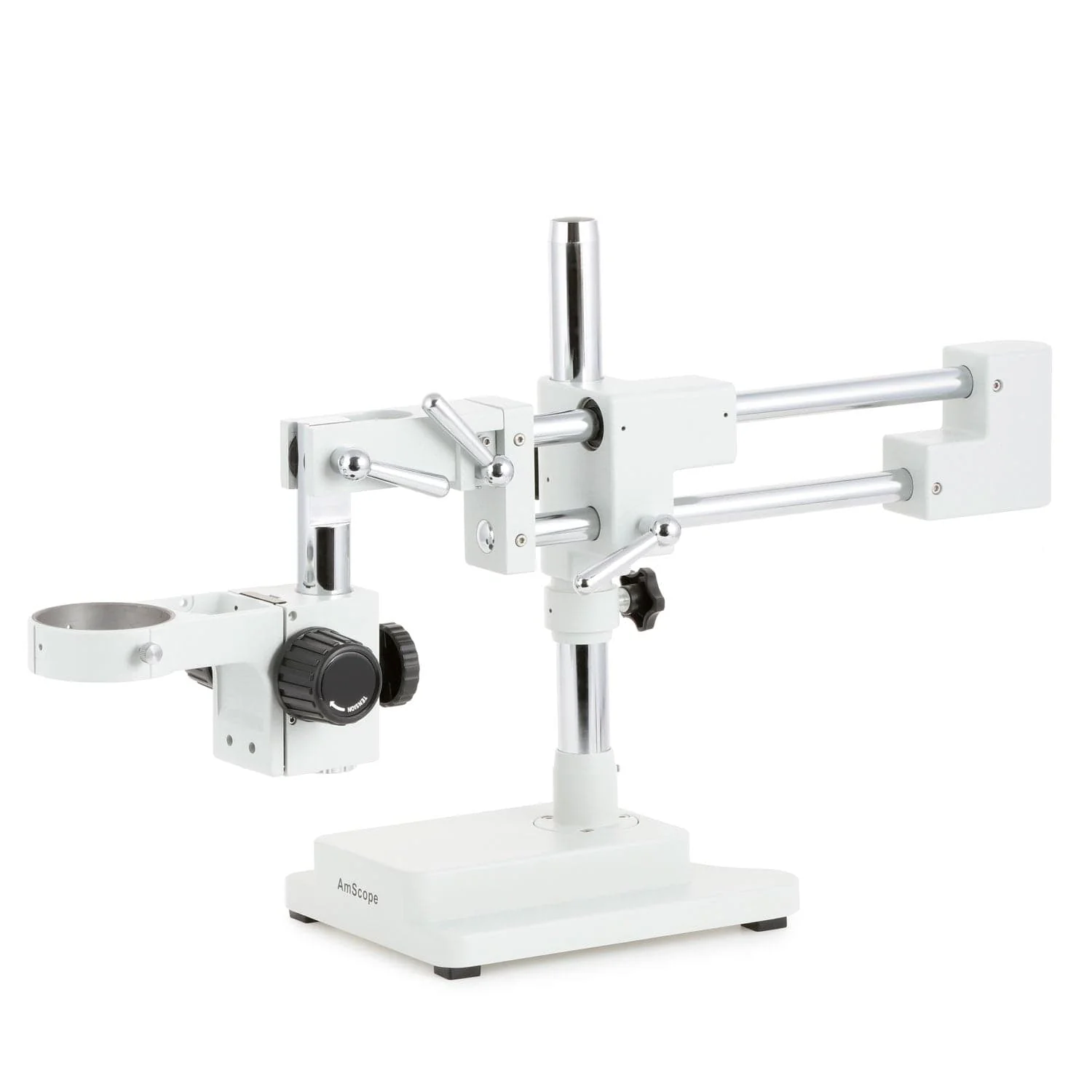

• Boom Stand: 20″ double-arm (overall length: 30″), 17″ high pillar, 10-1/4″x8-1/4″x2-0″ solid cast steel base
• Accessories: eye-guards

Packing List :

• One Stereo Zoom Head
• One Pair of Super Widefield 10X Eyepieces
• One Double-Arm Boom Stand
• One Focus Rack
• One Pair of Eye-Guards
• User’s Manual
