NexiusZoom (EVO)
Contact for Price
Brochure Download
The NexiusZoom and NexiusZoom EVO stereo microscopes enable examining your specimen with high-performance precision and generate three-dimensional images allowing observation for your highest demanding microscopy applications. These top level zoom microscopes are perfect for analyzing all kinds of material surfaces or to observe and prepare biological samples
NexiusZoom EVO Stereo Microscopes
The NexiusZoom EVO stereo microscopes enable examining your specimen with high-performance precision and generate three-dimensional images allowing observation for your highest demanding microscopy applications. These top-level zoom microscopes are perfect for analyzing all kinds of material surfaces or to observe and prepare biological samples.
The NexiusZoom EVO is supplied with a 1:8.4 plan achromatic zoom objective with 0.65x to 5.5x magnifications and a large field of view. Equipped with click-stops, these microscopes are ideal for educational and laboratory applications.
Highlights
- Binocular and trinocular heads
- HWF 10x/23 mm eyepieces
- Zoom ratio 1: 8.4, 6.5x to 55x
- Equipped with click-stops
- Double 3 W LED illumination
- Large working distance (110 mm)
- Ergonomic stands (Pillar, Rack & Pinion, Universal, Boom, Articulated)
- 10 years warranty
Models
| Model | Binocular | Trinocular | Pillar (-P) |
Rack & Pinion (-S) |
Universal (-U) |
Boom (Base) (-B) |
Boom (Clamp) (-BC) |
Articulated (-A / -AP) |
Mirror/Gooseneck (-M / -PG) |
|---|---|---|---|---|---|---|---|---|---|
| NZ.1702-P | • | • | |||||||
| NZ.1702-S | • | • | |||||||
| NZ.1702-PG | • | Gooseneck | |||||||
| NZ.1702-M | • | Mirror | |||||||
| NZ.1702-U | • | • | |||||||
| NZ.1702-B | • | • | |||||||
| NZ.1702-BC | • | • | |||||||
| NZ.1702-A | • | • | |||||||
| NZ.1702-AP | • | • | |||||||
| NZ.1703-P | • | • | |||||||
| NZ.1703-S | • | • | |||||||
| NZ.1703-PG | • | Gooseneck | |||||||
| NZ.1703-M | • | Mirror | |||||||
| NZ.1703-U | • | • | |||||||
| NZ.1703-B | • | • | |||||||
| NZ.1703-BC | • | • | |||||||
| NZ.1703-A | • | • | |||||||
| NZ.1703-AP | • | • |
Technical Specifications
- Eyepieces: Pair of HWF 10x/23 mm eyepieces (supplied with EVO models).
- Head: Binocular or trinocular 45° inclined tubes. ± 5 diopter adjustments on both eyepieces. Interpupillary distance 54-75 mm. Equipped with click-stops.
- Objectives: 1:8.4 plan achromatic zoom objective with 0.65x to 5.5x magnifications. Field of view from 35.4 mm to 4.2 mm. Working distance 110 mm.
- Stands:
- Pillar (-P) & Rack & Pinion (-S): Ergonomic flat bases, two object clamps, Ø 60 mm stage plates.
- Mirror (-M): Pillar stand with rotating mirror.

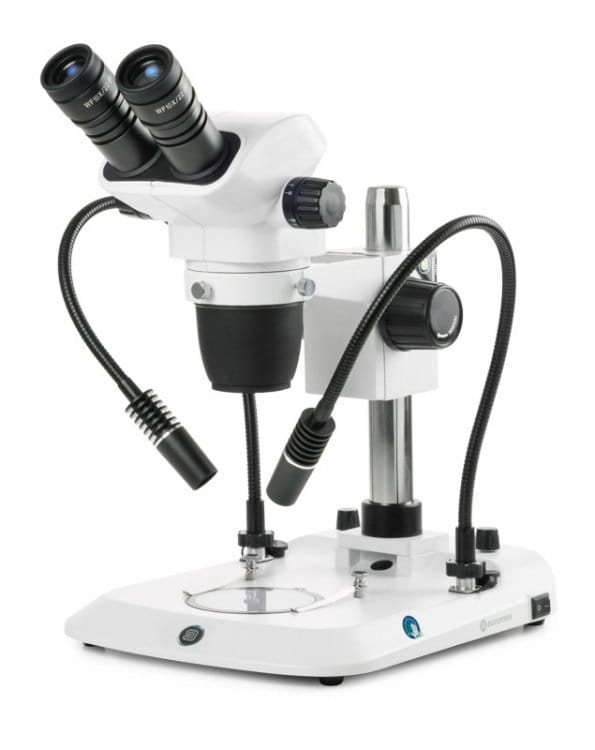

- Gooseneck (-PG): Pillar stand with dual gooseneck LED.
- Universal (-U) & Boom (-B / -BC): Ideal for large samples.
- Articulated (-A / -AP): Arm stands for flexible positioning.
- Illumination: 3 W transmitted and incident LED illuminators with internal power supply (P, S, and M stands). PG models feature dual gooseneck LEDs.
- Package Content: Supplied with power cord, eyecups, dust cover, spare fuse, and user manual.
