MicroBlue Microscope
The modern **MicroBlue** is an entry-level microscope especially appreciated when budget is limited. It’s built for educational purposes with a primary focus on ergonomics and excellent price/quality ratio, ensuring it can withstand extensive use and rough handling.
All models are supplied with secured eyepieces, 35 mm parafocal achromatic objectives, and **rechargeable batteries for cordless operation** (except LCD models).
Highlights
- Monocular, binocular, and trinocular models
- Standard, digital, and LCD models available
- **Revolving reversed nosepiece** for three or four objectives

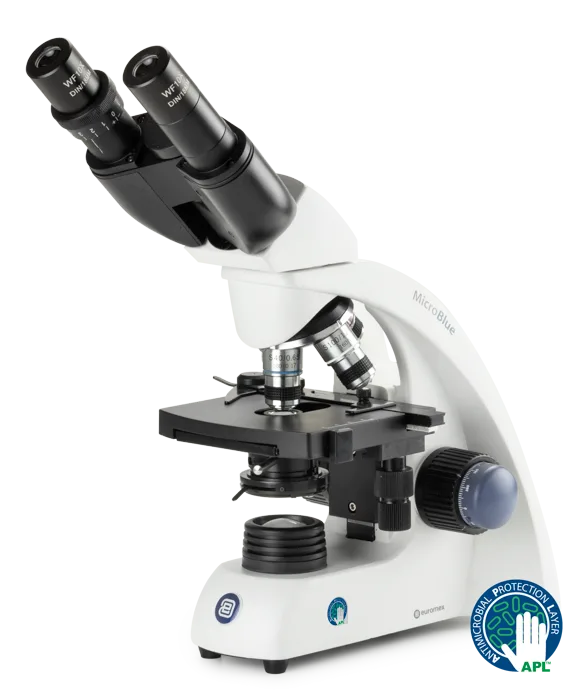

- Provided with **APL (Antimicrobial Protection Layer)**
- Integrated X-Y mechanical stage (on most models)
- **LED and NeoLED** illumination system
- Cordless operation (rechargeable batteries)
- Ergonomic carrying grip
Models
Standard Optical Models
| MODELS | Head | Max. Objectives | 4/10/S40x | S60x | S100x | X-Y Stage | Illumination | Batteries |
|---|---|---|---|---|---|---|---|---|

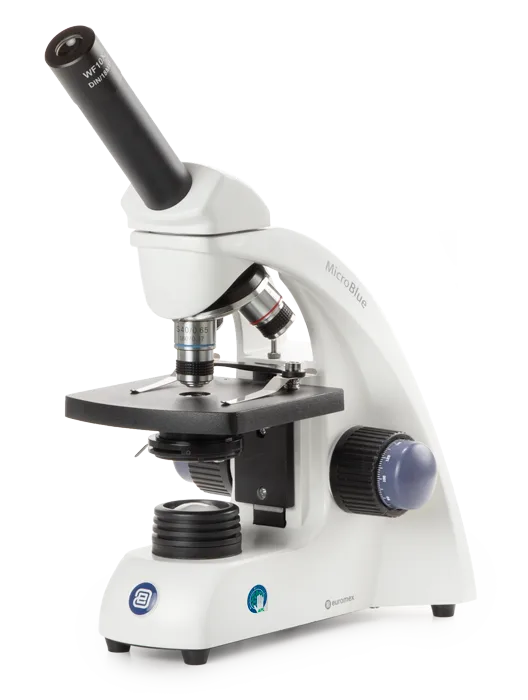

| MB.1001 | Monocular | 3 | • | LED | • | |||

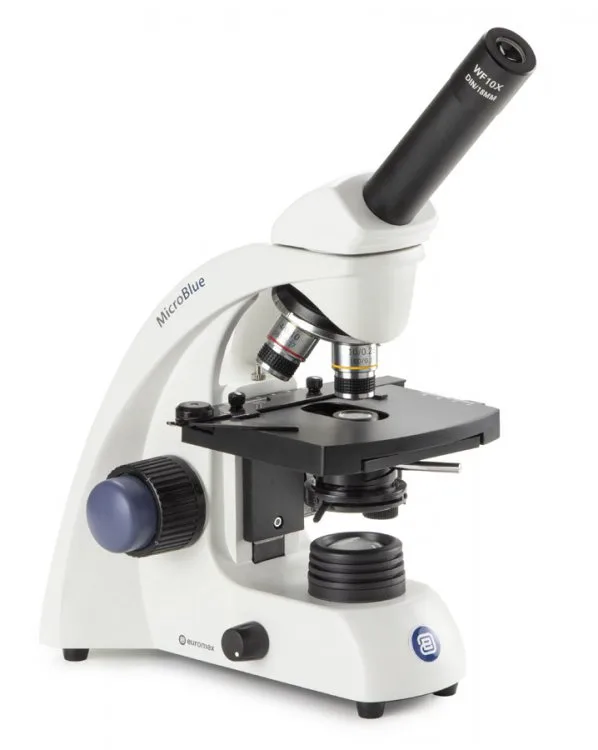

| MB.1051 | Monocular | 4 | • | • | LED | • | ||
| MB.1651 | Monocular | 4 | • | • | • | LED | • | |
| MB.1151 | Monocular | 4 | • | • | • | LED | • | |
| MB.1052 | Binocular | 4 | • | • | NeoLED | • | ||
| MB.1652 | Binocular | 4 | • | • | • | NeoLED | • | |
| MB.1152 | Binocular | 4 | • | • | • | NeoLED | • | |
| MB.1053 | Trinocular | 4 | • | • | NeoLED | • | ||
| MB.1653 | Trinocular | 4 | • | • | • | NeoLED | • | |

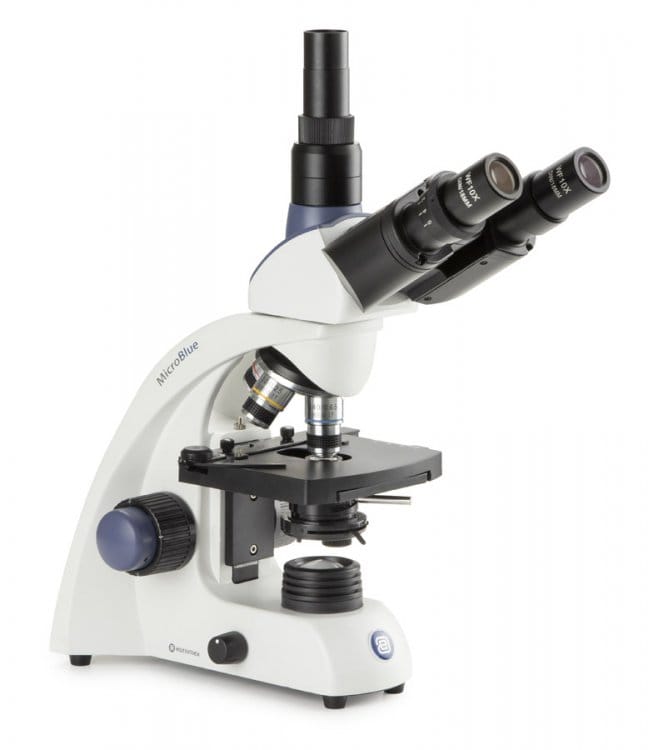

| MB.1153 | Trinocular | 4 | • | • | • | NeoLED | • |
Digital & LCD Models
| MODELS | Head Type | Digital Camera | LCD Screen | Max. Objectives | X-Y Stage | S100x | Illumination |
|---|---|---|---|---|---|---|---|

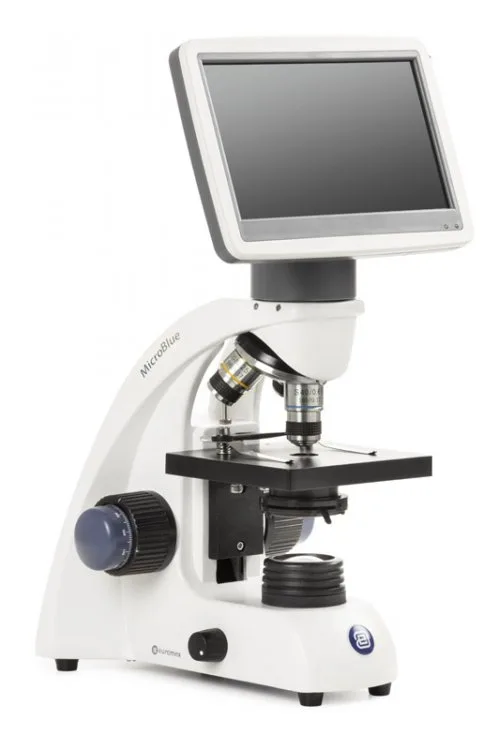

| MB.1001-LCD | Monocular | • | 3 | LED | |||
| MB.1051-LCD | Monocular | • | 4 | • | LED | ||

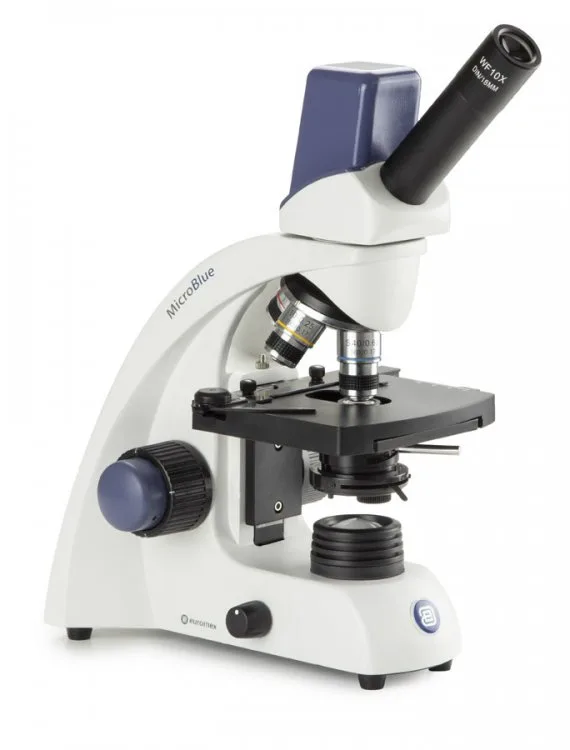

| MB.1055-5 | Digital Mono | 5.0 MP | 4 | • | LED | ||
| MB.1655-1 | Digital Bino | 1.3 MP | 4 | • | S60x | NeoLED | |
| MB.1655-5 | Digital Bino | 5.0 MP | 4 | • | S60x | NeoLED | |
| MB.1155-1 | Digital Bino | 1.3 MP | 4 | • | S100x | NeoLED | |
| MB.1155-5 | Digital Bino | 5.0 MP | 4 | • | S100x | NeoLED |
*LCD models can only be operated as a stand-alone unit and do not run on batteries.
Specifications
Wide field WF 10x/18 mm eyepiece(s). Secured and with pointer for monocular versions.
Monocular (45° inclined), Binocular (45° inclined), or Trinocular (30° inclined). Trinocular head has a fixed 50:50 beamsplitter. Digital heads come with integrated 1.3 MP or 5.0 MP CMOS cameras, or a 7” HD LCD screen.
Revolving reversed nosepiece for three or four objectives on ball bearings.
Achromatic 4x/0.10, 10x/0.25, S40x/0.65, and optional S60x/S100x objectives. The S40x, S60x, and S100x objectives are spring-loaded. All optics are anti-fungus treated.
Coaxial coarse and fine adjustments (15 µm per graduation). Total travel approx 15 mm. Supplied with an adjustable rack stop.
Basic model (MB.1001) has a 105 x 105 mm plain stage. All other models have a 115 x 100 mm stage with integrated 55 x 20 mm X-Y mechanical stage.
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm (except basic models, which have a single N.A. 0.65 fixed condenser).
Adjustable **1W LED** (monocular) or **1W NeoLED™** (bino/trino) transmitted illumination. All battery-operated models use **rechargeable AA batteries** and an external charger (except LCD models).
At the back of the microscope, a Kensington Security Slot is placed to secure the instrument from theft.
Digital models include ImageFocus software for measurements, annotations, and saving images/videos in various formats (JPG, TIF, AVI, etc.).
