MacroZoom MZ.5000
Contact for Price
Brochure Download
The digital MacroZoom microscope is built around one 0.7 to 5x zoom objective and enables inspection of objects directly on an 11.6” LCD screen, -5° to 15° inclination. This kind of microscope is well-suited for inspection and quality control departments
The digital MacroZoom is equipped with a built-in full High Definition 1080p camera which can deliver up to 60 images per second and is connected either to the supplied and attached 11.6” screen or an external stand-alone HD screen

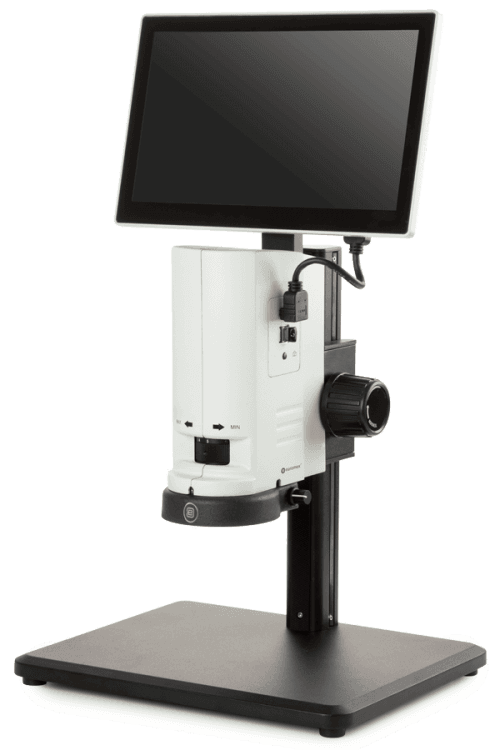

MacroZoom MZ.5000 Digital Microscope
The MacroZoom MZ.5000 is a stand-alone digital microscope system built around a single zoom objective (0.7x to 5x). It enables the direct inspection of objects on an integrated 11.6” LCD screen, making it an excellent solution for inspection and quality control departments.
Equipped with a built-in high-definition 1080p camera, it delivers sharp images at up to 60 frames per second. The system includes a large metal stand, LED ring light, and built-in software driven by a mouse for easy capturing and measuring.
Highlights
- MonoZoom stand-alone digital microscope
- Zoom from 0.7x up to 5x
- Built-in 1080p 2 MP HD camera (60 fps)
- Integrated HD 11.6-inch screen (-5° to 15° tilt)
- 105 mm working distance (110 mm with 0.5x lens)
- Built-in incident LED ring light (56 LEDs)
- Built-in mouse-driven on-screen software
- Convenient built-in capture button
- Removable 32 GB memory stick
- Large robust metal stand (320 x 260 mm)
Models
| Model | Optical Magnification | Working Distance | Camera Sensor | Screen | Illumination | Stand Size |
|---|---|---|---|---|---|---|
| MZ-5000 | 0.7x to 5x | 105 / 110 mm* | 2 MP CMOS 1920 x 1080 |
11.6 inch | LED Ring Light | 320 x 260 mm |
* 110 mm working distance achieved with the supplied 0.5x additional lens.
Technical Specifications
- Central Zoom Objective: Single zoom objective with 0.7x to 5x magnification. Engravings at 1, 1.5, 2, 3, 4, and 5x. Working distance 105 mm (or 110 mm with 0.5x lens).
- Stand: Large 320 x 260 mm metal stand with rack and pinion system. Travel range: 225 mm.
- Illumination: 5,500 K LED ring light with 56 LEDs, adjustable intensity.
- Built-in Camera: HD 1080p, 2 MP CMOS high-speed camera (60 fps). HDMI output. Field of view 29.8 to 4.18 mm (standard). Capture button on body.
- Software: Built-in on-screen software (mouse-driven). Features: Capture, Freeze, Auto White Balance, Exposure, File Manager, Grids, Measurement tools.
- Connectivity: HDMI output, 2x USB ports (for mouse and storage).
- Package Content: Supplied with 32 GB memory stick, wireless mouse, short HDMI cable, 0.5x additional lens, and power supply.
