MacroZoom MZ.4700(-HDS)
Contact for Price
Brochure Download
The MZ.4700 is an integration of a 1080p HDMI camera, an electrical controlled continuous zoom auto-focus objective together with a stand and illumination system. The MZ.4700 enables direct inspection of objects on a HD screen. The mouse-driven built-in software controls the camera parameters and enables measurements on screen, capturing and saving .jpg or .bmp format pictures and .mp4 format video on an USB memory stick

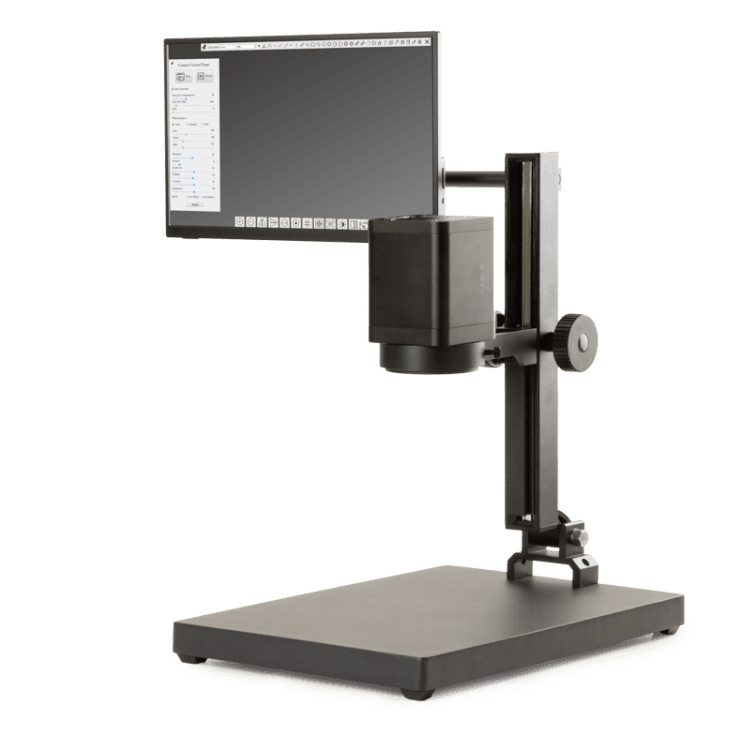

MacroZoom MZ.4700 Series Digital Microscope
The digital MacroZoom MZ.4700 series allows for the direct inspection of objects on an HD screen with impressive depth of field and clarity. This stand-alone inspection system integrates a 4K UHD/1080p HDMI camera, an electrically controlled continuous zoom objective with autofocus, and a robust stand with illumination.
Ideal for quality control, inspection, and analysis in industrial and biological applications, the MacroZoom series enables precise observation without the need for a computer, thanks to its built-in mouse-driven software.
Highlights
- Stand-alone digital inspection system (no PC required)
- Sony 1/2.8” 4K UHD / 1080P CMOS sensor
- Motorized 18x optical zoom with Autofocus
- On-screen magnification from 2.8x to 47x (on 24″ screen)
- Large working distance (205 – 225 mm)
- Standard LED ring light included
- Built-in mouse-driven software for measurement and control
- High-definition image and video capture to SD card
- Models available with integrated 11″ HD screen
Models
| Model | Digital AutoFocus |
Standard Stand |
11″ HD Screen |
LED Ring Illumination |
Working Distance |
|---|---|---|---|---|---|
| MZ-4700-HDS | • | • | • | • | 205 – 225 mm |
| MZ-4700 | • | • | • | 205 – 225 mm | |
| MZ-4705 | • | 205 – 225 mm |
* MZ-4705 is the main unit only (requires stand and illumination).
Technical Specifications
- Zoom Objective: 16-element objective with 18x zoom ratio. produces magnifications up to 0.56x. Manual or Automatic focusing.
- Magnification: On-screen magnification from 2.8x to 47x (calculated for a 24″ screen @ 190 mm WD).
- Field of View: From 255 x 145 mm (1x zoom) to 14 x 8 mm (18x zoom).
- Camera Sensor: Sony 1/2.8” 4K UHD / 1080P CMOS High Definition sensor. 8.3 MP resolution (3840 x 2160 pixels).
- Frame Rate: Up to 60 images per second (at optimal conditions).
- Connections: HDMI (4K/1080p output), USB (for mouse/storage), WiFi, Ethernet.
- Software: Built-in intuitive software controlled by mouse. Features autofocus control, measurement toolbar, and image/video capture (.jpg, .bmp, .mp4).
- Illumination: Standard LED ring light (included with 4700/4700-HDS). Optional directional 12x 1W LED ring light available.
- Storage: 32 GB SD card (included).
- Package Content: Supplied with standard ring light (where applicable), 32 GB SD card, mouse, WiFi dongle, HDMI cable, and power supply.
