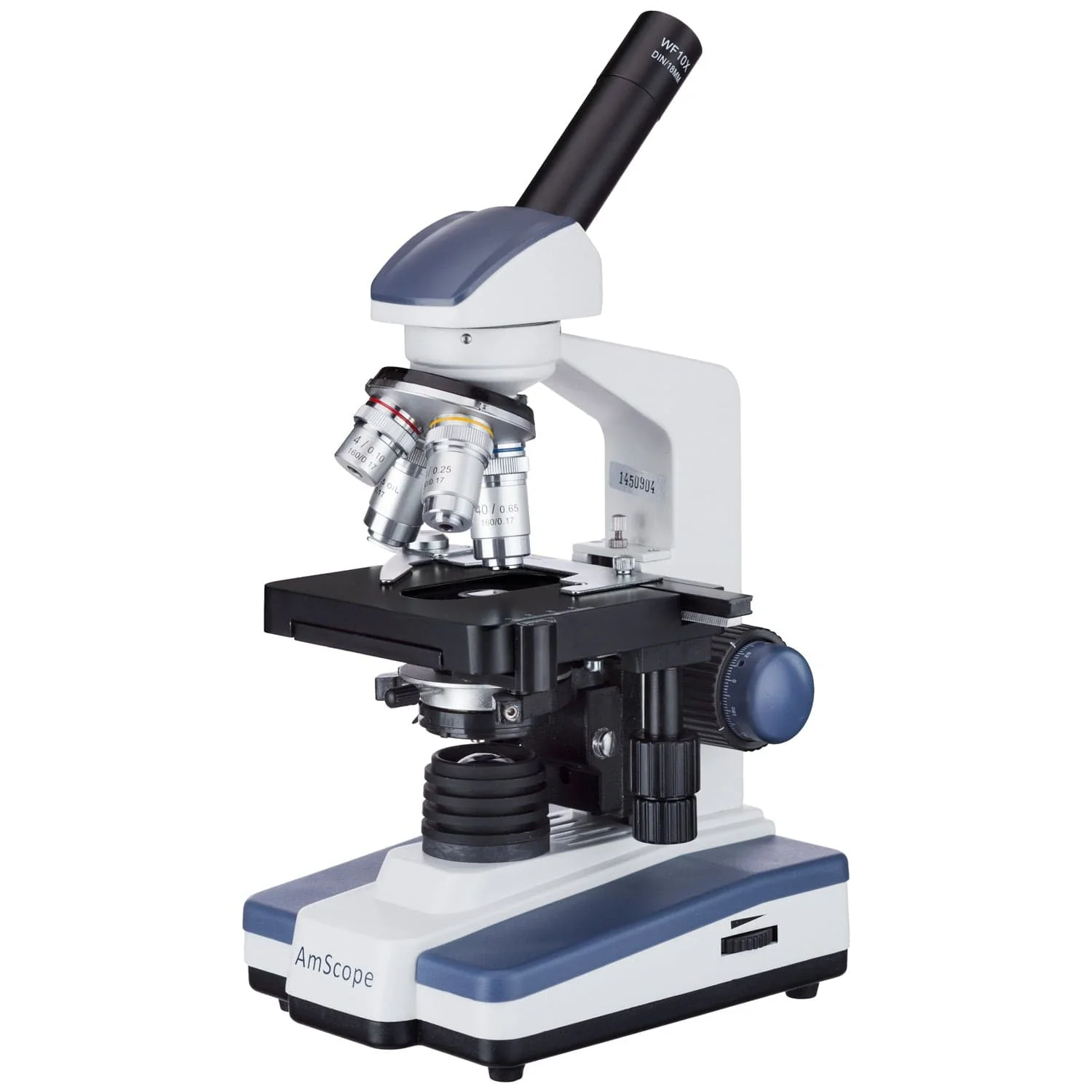

The M620 monocular compound microscope is designed for classrooms and basic laboratory applications. It is an ideal microscope for teachers and students, including those in medical school or with a major in biology. It has a number of advancements in functionality compared to other microscopes in its class, such as enhanced LED lighting and a centerable condenser. Use the microscope for studying fixed or live cells, bacteria, plants and soil, or water samples.
The monocular head keeps things simple. The use of a single eyepiece means that no adjustments are necessary for eye alignment or symmetrical focus. The head can rotate 360° for viewing from different positions. Interchangeable eyepieces allow you to change the overall magnification with optional lenses, or use a camera in place of the eyepiece to view microscopic images on a computer monitor or other display.
The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. This covers magnifications needed for studying hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.

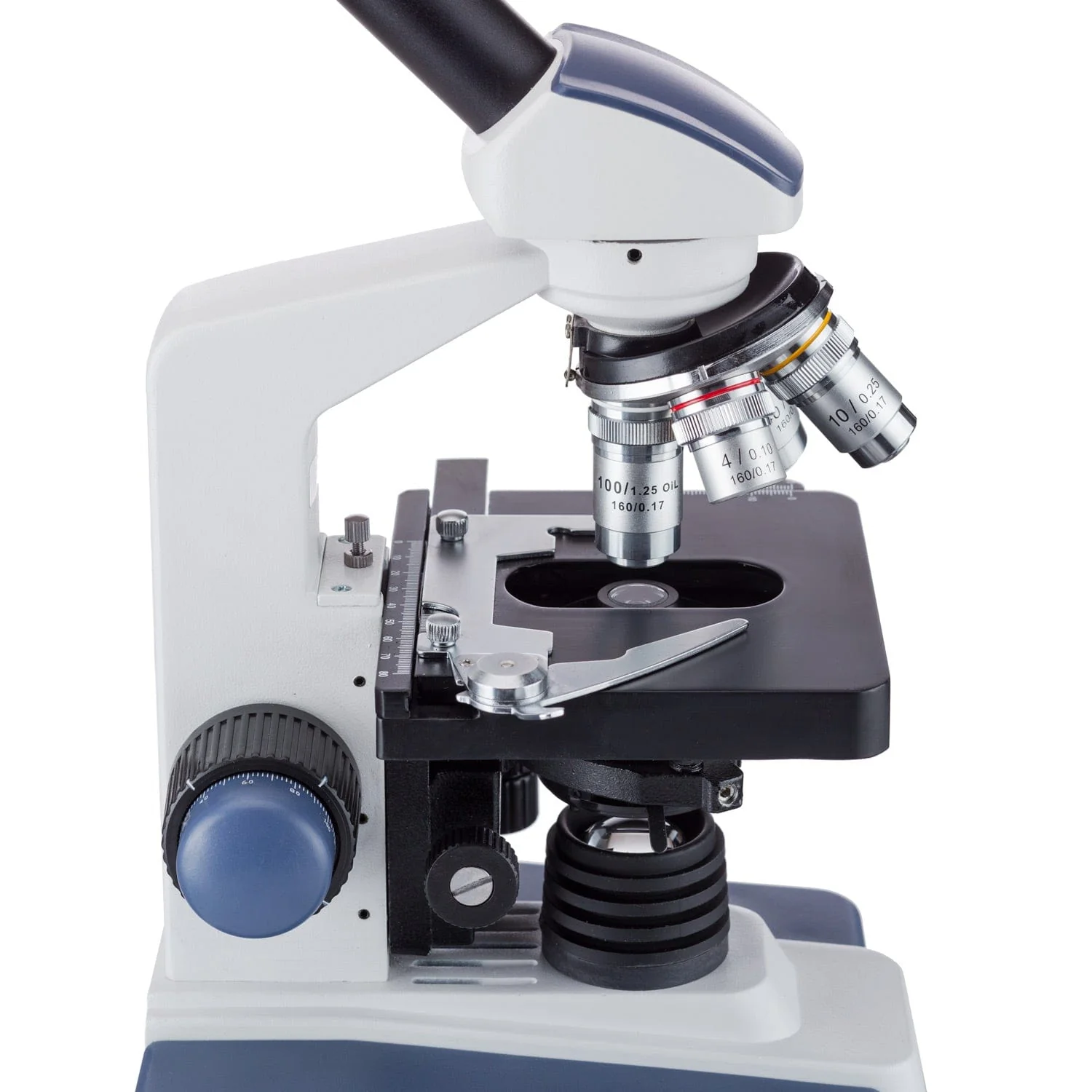

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage’s low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.
The LED sub-stage lighting provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural colors for imaging. With our specially developed fly-eye lens, the light is evenly distributed at maximum brightness to improve contrast and resolution. Illumination is further enhanced by a centerable Abbe condenser, which can be realigned for any magnification to guarantee proper lighting.
Specifications :
- Eyepieces: 10X
- Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
- Head: monocular, 45° incline, 360° swivel
- Nosepiece: forward, ball-bearing quadruple
- Mechanical Stage: 3D double-layer with caliper
- – Size: 118mm x 127mm
- – Travel Range (X-Y): 70mm x 21mm
- Condenser: NA1.25 Abbe condenser with iris diaphragm
- Transmitted Illumination: variable-intensity LED
- Focusing: coaxial coarse & fine knobs on both sides
- Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
Packing List:
- One monocular microscope head
- One microscope body
- Four objective lenses: 4X, 10X, 40X, 100X
- One 10X eyepiece
- One blue color filter
- One dust cover
- One sample immersion oil
