LE.5212 illumination station
Contact for Price
Brochure Download
The Euromex illumination station comes with independently controlled goosenecks ring light and transmitted stage illuminator making it a complete illumination solution. The base can be used as a standalone tabletop unit or can be slided over a pole stand
LE.5212 Illumination Station

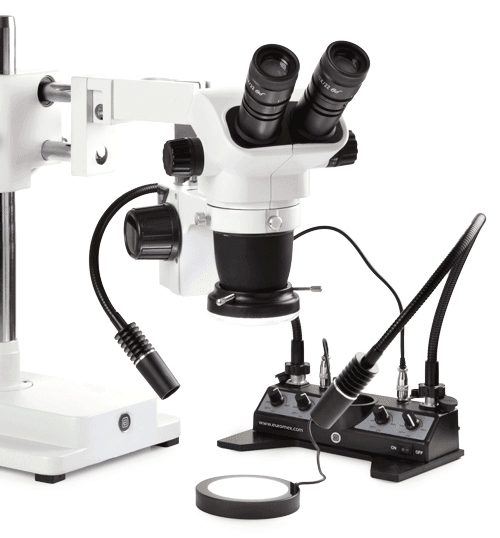

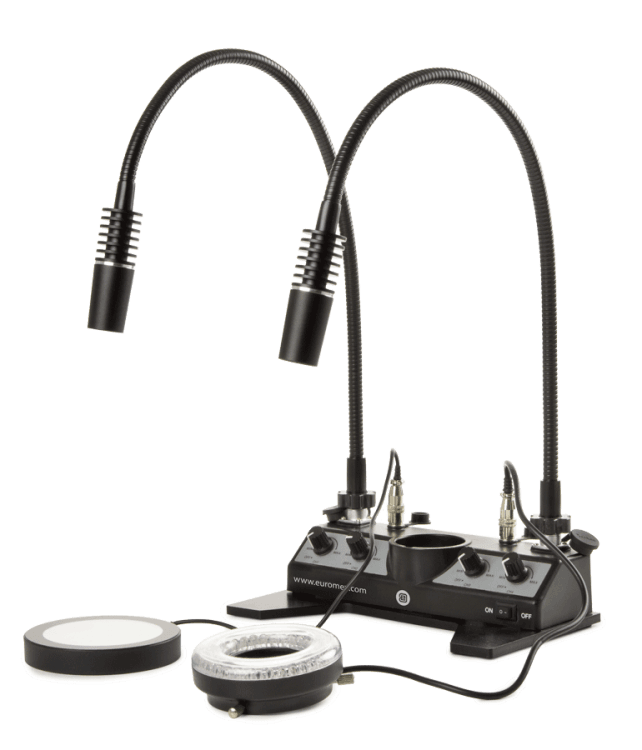

The Euromex LE.5212 Illumination Station is a professional base station offering a complete lighting solution for stereo microscopy, industry, Life Sciences, and Materials Sciences. It integrates independently controlled goosenecks, a ring light, and a transmitted stage illuminator into a single unit.

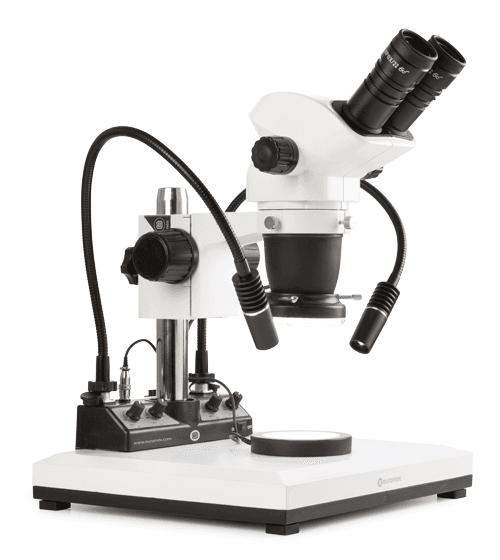

This station can function as a standalone tabletop unit or be mounted on a stereo microscope pole stand. It features interchangeable 3W powerLED goosenecks for flexible angle illumination, a high-intensity ring light for homogenous overhead lighting, and a transmitted light stage designed for translucent objects.
Highlights
- Professional base station with various LED cold light sources
- Suitable for Materials Science and stereo microscopy
- Four independent and autonomous illuminators
- Complete illumination solution in one station
- Available with white light spectrum and three monochromatic wavelengths (UV/Violet)
- Standalone or pole-mountable design
Models
| Model | 3 W Gooseneck Guide LED | 4 W White LED Ring Light | 2 W White LED Transmitted Stage |
|---|---|---|---|
| LE-5212 | White LED, 6,500 K | • | • |
| LE-5212-365 | 365 nm, monochrome | • | • |
| LE-5212-395 | 395 nm, monochrome | • | • |
| LE-5212-420 | 420 nm, monochrome | • | • |
Technical Specifications
- Illumination Types:
- Oblique: Two self-sustaining 3W Gooseneck LED guides (56 cm length) with 3-lens focusing heads. Available in White (6500 K), UV (365 nm), or Violet (395/420 nm).
- Incident Ring Light: Homogeneous 6500 K white LED ring light (60 LEDs, up to 24,000 Lux). Mounts on diameters 21-61 mm.
- Transmitted Stage: 6500 K white LED stage illumination (42 LEDs, up to 8,000 Lux). Stage diameter 94.5 mm.
- Control: Independent intensity control for each power supply connection.
- Mounting: Tabletop standalone or pole mount (up to 44 mm diameter, includes 35 mm and 25 mm adapter rings).
- Operating Voltage: 100-240 VAC / 50-60 Hz — Output 5 VDC / 4 A.
- Dimensions (Main Body): 40 (h) x 65 (d) x 200 (w) mm.
- Weight: 1.9 kg.
Accessories
Interchangeable gooseneck guides available:
- LE.5260: White 6,500 K high-power LED guide.
- LE.5261: 365 nm high-power UV-LED guide.
- LE.5262: 395 nm high-power Violet-LED guide.
- LE.5263: 420 nm high-power Violet-LED guide.
- LE.5264: Polarization filter (screw-on type).
* Warning: Protective orange glasses are highly recommended when using the 365 nm gooseneck.
