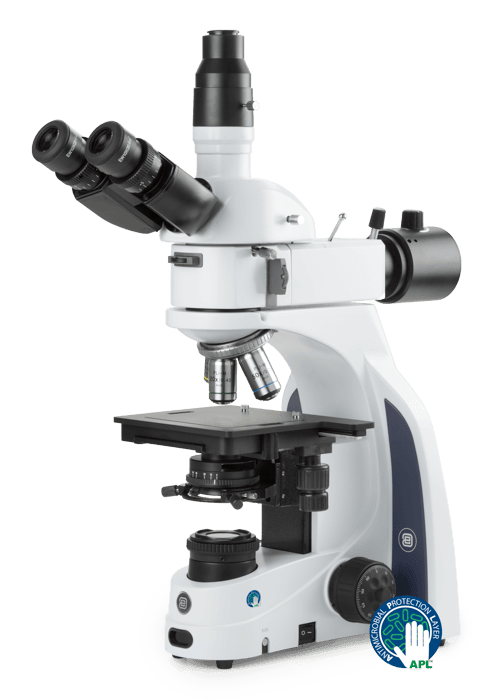

iScope® for Materials Science (Metallurgical)
The iScope® metallurgical microscopes are especially configured for observation of all kinds of materials such as metals, plastics, wood, glass, etc., making them ideal for materials research and quality assurance laboratories.
It features **Wide field WF 10x/22 mm eyepieces**, **infinity corrected Plan M-IOS objectives**, and both **transmitted and reflected Köhler illumination** for maximum versatility.
Highlights
- Trinocular model
- WF 10x/22 mm eyepieces
- Reversed ball-bearing quadruple nosepiece
- Plan M-IOS objectives (Infinity Corrected)
- Reflected and Transmitted NeoLED™ Köhler illumination
- Polarizer and analyzer filters included
- Rackless integrated X-Y mechanical stage
- CSS – Cable Storage System and anti-theft slot
Models
This microscope is supplied as a complete metallurgical model with both transmitted and reflected Köhler illumination.
| MODEL | Trinocular Head | WF 10x/22 mm Eyepieces | PLMi 5x/10x/20x/50x IOS Objectives | Transmitted NeoLED™ Köhler | Reflected NeoLED™ Köhler |
|---|---|---|---|---|---|
| IS.1053-PLMi | • | • | • | • | • |
• = Standard. Optional rechargeable batteries available for transmitted illumination.
Specifications
Wide field WF 10x/22 mm eyepieces with 22 mm field of view (Ø 30 mm tube).
Siedentopf trinocular head with 30° inclined tubes. Interpupillary distance 48-76 mm. Diopter ± 5 adjustment on left eyepiece. The trinocular head has a light path selector (100:0 / 0:100) and generates an erect image.
Revolving and reversed ball-bearing quadruple nosepiece.
Infinity corrected achromatic DIN plan M-IOS 5x/0.12, 10x/0.25, 20x/0.40, and S50x/0.70 IOS objectives. Optional S80x/0.80 and S100x/0.85 objectives are also available. The S50x and S100x objectives are spring-loaded. All optics are anti-fungus treated and anti-reflection coated.
Double coaxial, low-positioned coarse and fine adjustments with 180 graduations. Precision 1.1 µm, 200 µm per rotation. Total travel approx 19 mm. Supplied with an adjustable rack stop.
Scratch-resistant 185 x 140 mm stage with integrated 74 x 48 mm X-Y rackless mechanical stage and soft-close removable specimen holder.
Height adjustable Abbe N.A. 1.25 condenser for brightfield with iris diaphragm and swing-out filter holder.
Reflected: Intensity adjustable 3 W NeoLED™ Köhler illumination. Includes rotatable polarizer, analyzer, built-in condenser with diaphragms, and rotating filter disc (green, blue, yellow, white).
Transmitted: 3 W adjustable Köhler NeoLED™ diascopic illumination with internal 100-240 V power supply.
The reflected illumination attachment includes a built-in polarizer and analyzer. The microscope also has an integrated slot for an optional polarization filter for transmitted illumination.
Allows users to easily stow away excess cable length into the back of the instrument and to roll up the power cable for easy storage.
The integrated carrying grip ensures safe transportation, and a Kensington Security Slot is placed at the back to secure the instrument.
Supplied with power cord, dust cover, a spare fuse, white filter, and user manual. All packed in a polystyrene box.
