DZ series
Contact for Price
Brochure Download
The modular stereo microscopes of the DZ series combine ergonomics with very high resolution optics. Either standard versions or customized models are available thanks to the large choice of central zoom units, eyepieces, stands and accessories
Six standard configurations are available for magnifications from 8 to 80 times. One can customize configurations for magnifications from 4x up to160 times around the central zoom bodies DZ.1000, DZ.0800 or DZ.0630
A fluorescence illumination unit enables scientific research like for studies of vertebrate development and gene function, teratology, genetics and environmental sciences

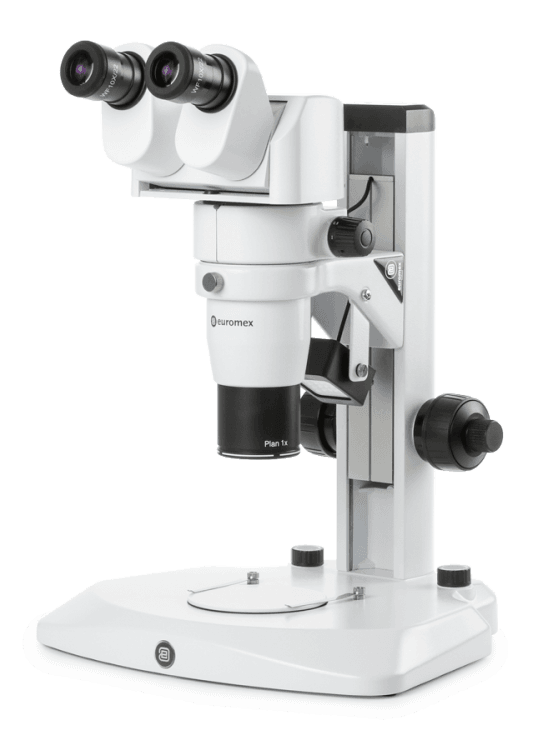

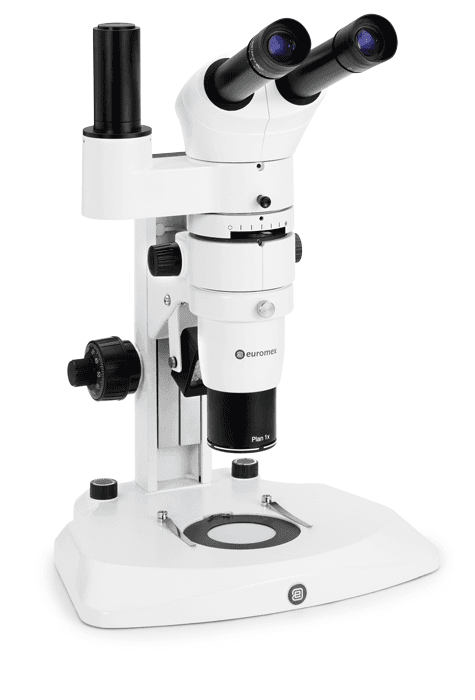

DZ Series Stereo Microscopes
The modular stereo microscopes of the DZ series combine ergonomics with very high-resolution optics. Either standard versions or customized models are available thanks to the large choice of central zoom units, eyepieces, stands, and accessories.
Six standard configurations are available for magnifications from 8 to 80 times. The DZ modular microscope—with its Extra Wide Field eyepieces, Plan Apochromatic 0.5x, 1x, and 2x common objectives, ergonomic stereo head with 0-35° inclined tubes or fixed stereo head with 20° inclined tubes, and stand with incident and transmitted LED illuminations—belongs to the top stereo microscopes of Euromex.
Highlights
- Binocular and trinocular models
- Ergonomic tilting head from 0 to 35° or fixed 20° inclined head
- EWF 10x/22 mm eyepieces
- 3 Central Zoom Units (1:6.3, 1:8, 1:10)
- Magnifications from 8x to 80x (standard)
- Plan Apochromatic Common Main Objective (CMO)
- Ergonomic rack & pinion stands
- Transmitted and incident 3 W LED illumination
- Multihead versions available
- 10 years warranty
Models
| Model | Binocular 20° Head |
Ergo Binocular 0-35° Tilting |
Dual Binocular Heads |
Magnification 8x – 50x (1:6.3) |
Magnification 8x – 64x (1:8) |
Magnification 8x – 80x (1:10) |
|---|---|---|---|---|---|---|
| DZ-1100 | • | • | ||||
| DZ-1104 | • | • | ||||
| DZ-1105 | • | • | ||||
| DZ-1800 | • | • | ||||
| DZ-1804 | • | • | ||||
| DZ-1805 | • | • | ||||
| DZ-1600 | • | • | ||||
| DZ-1604 | • | • | ||||
| DZ-1605 | • | • |
Technical Specifications
- Eyepieces: Pair of EWF 10x/22 mm eyepieces.
- Heads:
- Ergonomic binocular 0-35° tilting head.
- Binocular 20° tilted head.
- Diopter ± 5 adjustment on both eyepieces.
- Interpupillary distance from 55 to 75 mm.
- Central Zoom Units:
- 1:6.3 (Magnifications 8 to 50x).
- 1:8 (Magnifications 8 to 64x).
- 1:10 (Magnifications 8 to 80x).
- Common Main Objective (CMO): Standard 1x Plan Apochromatic (WD 78 mm). Optional 0.5x (WD 126 mm) and 2x (WD 33 mm) available.
- Stand: Large ergonomic stand with ø 100 mm object plate and two object clamps. Coaxial coarse and fine adjustment.
- Illumination: Transmitted and incident 3 W LED illuminations with built-in 100-240 V power supply. Both illuminators can be used simultaneously and adjusted separately.
- Package Content: Supplied with power cord, dust cover, spare fuse, and user manual.
