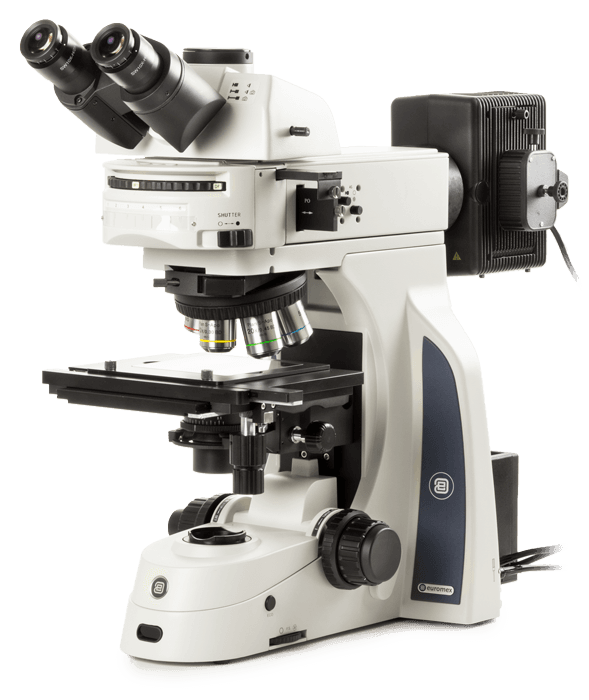

Delphi-X Observer materials science (metallurgical)
Contact for Price
Brochure Download
Brightfield and Darkfield EPi illumination
Delphi-X Observer™ for Materials Science
The ergonomic design and outstanding state-of-the-art objectives make the Delphi-X Observer™ the ideal microscope for advanced Materials applications. The 25 mm field of view of the eyepieces and the plan apochromatic objectives enable perfect observations and color rendering at high resolving power.
Highlights
- Brightfield and Darkfield illumination
- Normarski DIC (optional)
- Infinity Optical System (IOS)
- High contrast BD objectives with minimal aberrations
- Full Apo, Semi-Apo and Plan BD objectives
- Super Wide field SWF 10x/25mm eyepieces
- 100 W halogen reflected illumination
- Transmitted illumination on specific models
- Sextuple reversed nosepiece with slot for DIC
- Ergonomic design with adjustable eye-level and stage height
Models
The Delphi-X Observer™ for materials science is available in four models, with options for transmitted illumination and ergonomic tilting heads.
| MODELS | Fixed 30° Head | Ergonomic Tilting Head | SWF 10x/25mm Eyepieces | Plan Semi-Apo BD (5x-20x) | Plan Apo BD (50x) | Plan Apo BD (100x) | 100W Transmitted Light | 100W Reflected Light | DIC |
|---|---|---|---|---|---|---|---|---|---|
| DX-2053-PLMRi | • | • | • | • | o | • | • | o | |
| DX-2058-PLMRi | • | • | • | • | o | • | • | o | |
| DX-2053-PLMi | • | • | • | • | o | • | o | ||
| DX-2058-PLMi | • | • | • | • | o | • | o |
• = Standard, o = Optional
Specifications
Super Wide field SWF 10x/25 mm, Ø 30 mm tubes. (Optional EWF 10x/22 mm eyepieces available).
Standard Siedentopf trinocular with 30° inclined tubes. Interpupillary distance 47-78 mm. Optical path selector (100:0 / 80:20 / 0:100). Optional ergonomic 0-35° tilting trinocular head available.
Revolving sextuple reversed nosepiece on ball-bearings with M25 objectives mounting threads and slot for an optional DIC prism.
The IOS consists of Super wide field SFWF 10x/25 mm eyepieces, high numerical aperture 45 mm parafocal objectives, and a 200 mm focal length tube lens. This provides superior optical performance, high-contrast, and high-resolution images with improved chromatic aberration correction.
Infinity corrected Brightfield/Darkfield (BD) objectives. All optics are anti-fungus treated and anti-reflection coated.
Plan Semi-Apochromatic BD: 5x/0.15 (WD 20 mm), 10x/0.30 (WD 11 mm), 20x/0.45 (WD 3.1 mm)
Plan Apochromatic BD: 50x/0.80 (WD 1 mm), 100x/0.90 (WD 1 mm) (Optional)
Large 215 x 170 mm stage with a 105 x 105 mm (X-Y) integrated right-handed mechanical stage. Options available for stage height adjustment.
Coaxial coarse and fine adjustment (1 µm precision) with adjustable rack stop and friction control. Focusing knobs can be switched from left to right for user preference.
In-height adjustable long working distance N.A. 0.65 condenser (10.2 mm) with numerical aperture identification marks. (Only on models with transmitted illumination).
Reflected: 100 W halogen Köhler illumination with internal 100-240V power supply. Equipped with field and aperture diaphragms, filter slots, polarizer, and analyzer. A rotating cassette allows for quick switching between darkfield and brightfield.
Transmitted (on -PLMRi models): 100 W halogen Köhler illumination with two push-in/push-out neutral density filters.
With the optional DIC module, height differences that are normally invisible in brightfield techniques can be visualized. These relief-like images are ideal for surface inspections of wafers, LCD screens, etc.
The carrying grip at the back ensures safe transportation, and an integrated tool holder makes sure the right tool is always available.
