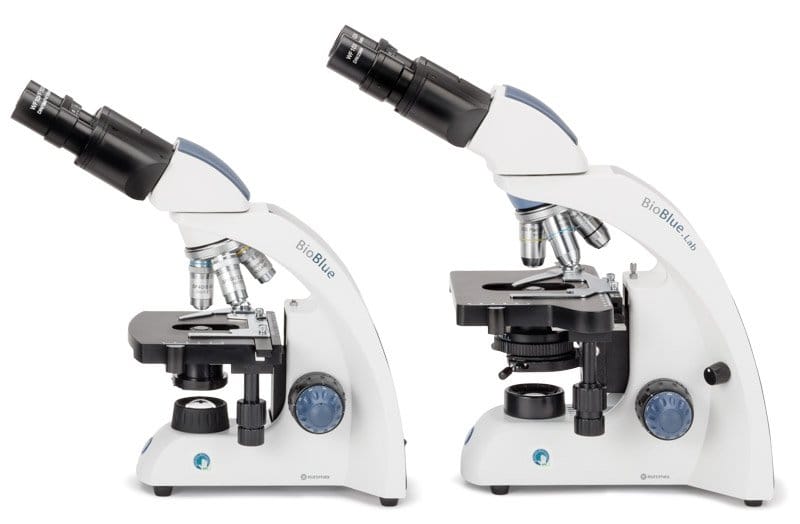

BioBlue.Lab Microscope
The BioBlue.Lab is an instrument that precisely matches the highest expectations of microscopy users. These ergonomic, easy-to-use microscopes have been specifically designed for educational and laboratory applications.
The 150 x 140 mm stage with integrated rackless X-Y mechanical stage provides smooth translation of the specimen and highly precise positioning, which is highly appreciated in demanding cytology and histopathology applications.
Highlights
- Binocular and trinocular models
- Reversed quadruple nosepiece
- Plan and Plan IOS objectives
- Finity and infinity optical system
- Integrated rackless mechanical stage
- 3W NeoLED™ illumination
- Ergonomic carrying grip
Models
The BioBlue.Lab models offer great functionality and are equipped with WF10x/20 mm eyepieces and a choice of Plan, Plan IOS, or Plan Phase IOS objectives.
| MODELS | Binocular | Trinocular | 4x/10x/S40x/S100x Plan | 4x/10x/S40x/S100x Plan IOS | 10x/20x/S40x/S100x Plan Phase IOS | Rackless Stage | NeoLED |
|---|---|---|---|---|---|---|---|
| BB.1152-PL | • | • | • | • | |||
| BB.1153-PL | • | • | • | • | |||

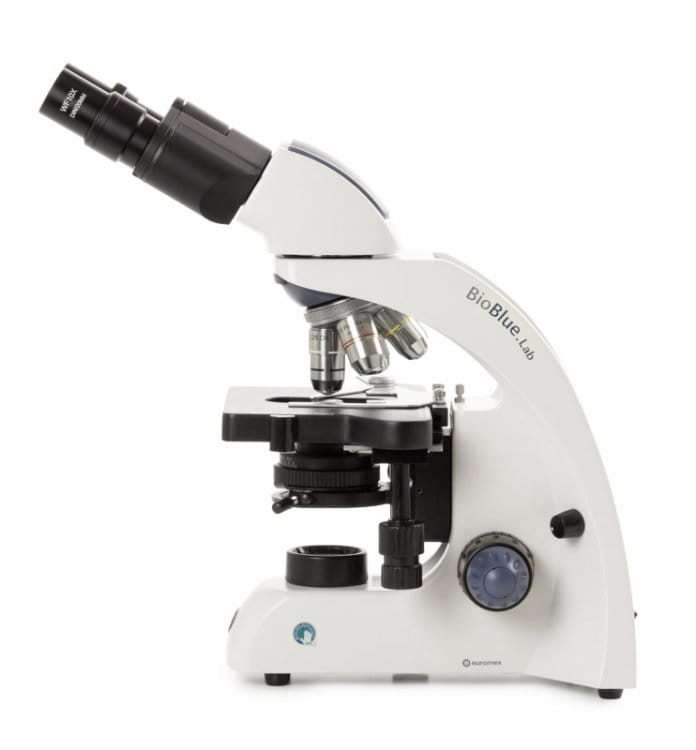

| BB.1152-PLi | • | • | • | • | |||

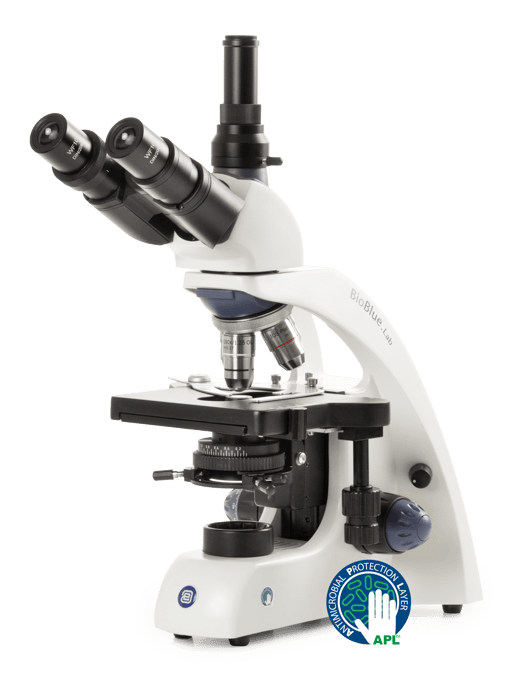

| BB.1153-PLi | • | • | • | • | |||
| BB.1152-PLPHi | • | • | • | • | |||
| BB.1153-PLPHi | • | • | • | • |
• = Standard
Specifications
Wide field WF 10x/20 mm eyepieces, Ø 30 mm tubes.

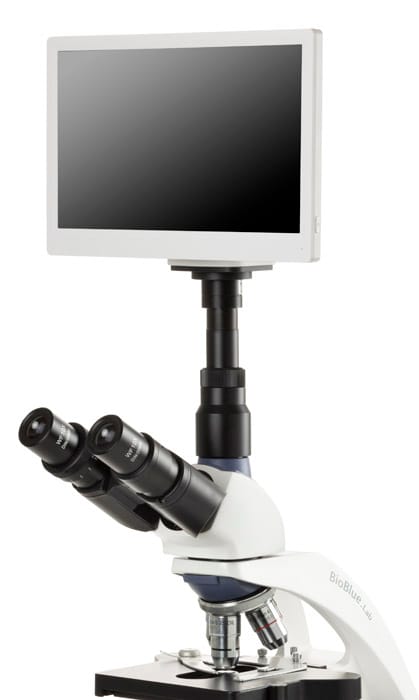

Binocular or Trinocular Siedentopf type heads with 30° inclined tubes. Interpupillary distance 48-75 mm. All models have a ±5 diopter adjustment on the left tube. All heads are 360° rotatable. The trinocular head has a fixed light path beamsplitter (50:50).
Reversed quadruple nosepiece on ball bearings. Slot for analyzer.
Equipped with Plan, Plan IOS, or Plan Phase IOS objectives depending on the model. Optional 20x and S60x objectives are also available. The S40x, S60x and S100x objectives are spring-loaded. All optics are anti-fungus treated and anti-reflection coated.
Coaxial coarse and fine adjustments with 200 graduations. Precision 1.5 μm per graduation, 0.3 mm per rotation. Total travel approx 28 mm. Supplied with an adjustable rack stop and friction control.
Rackless 150 x 140 mm stage with mechanical 75 x 30 mm X-Y translation stage.
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder. Phase contrast models are supplied with a Zernike phase contrast kit with rotating disc and centering telescope.
Adjustable 3 W NeoLED™ illumination system for increased light output. Power supply with integrated 100-240 Vac.
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft.
Supplied with power cord, dust cover, a spare fuse, user manual, 5 ml immersion oil, and white filter. All packed in a polystyrene box.
