AmScope T490-DK Series Simul-Focal Darkfield Trinocular Compound Microscope 40X-1000X Magnification with 3D Mechanical Stage

The T490-DK adds darkfield illumination to our hardest-working microscope. A top choice for veterinarians, breeders, and clinics, this instrument has proven reliability and optical quality. It boasts features such as a compensation-free Siedentopf head, smooth stage translation, and a precision focus system with easy tension-adjustment and vertical-lock. The simul-focal trinocular head provides a dedicated photo port which can be used simultaneously with both eyepieces. With brightfield and darkfield illumination, this model is ideal for bloodwork, fluid-analysis, and pathology.

To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf mechanism. A diopter is available on the both ocular tubes to compensate for asymmetry, and the ocular tubes are angled at 30° to comfortably accommodate a seated position without neck strain. The 23mm photo port is height-adjustable to match focus with the eyepieces, and can be replaced with an optional CX series C-mount port which have built-in reduction, and can directly interface with C-mount cameras.

The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X.  This covers magnifications needed for studying hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage’s low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion movement for precise height adjustment.

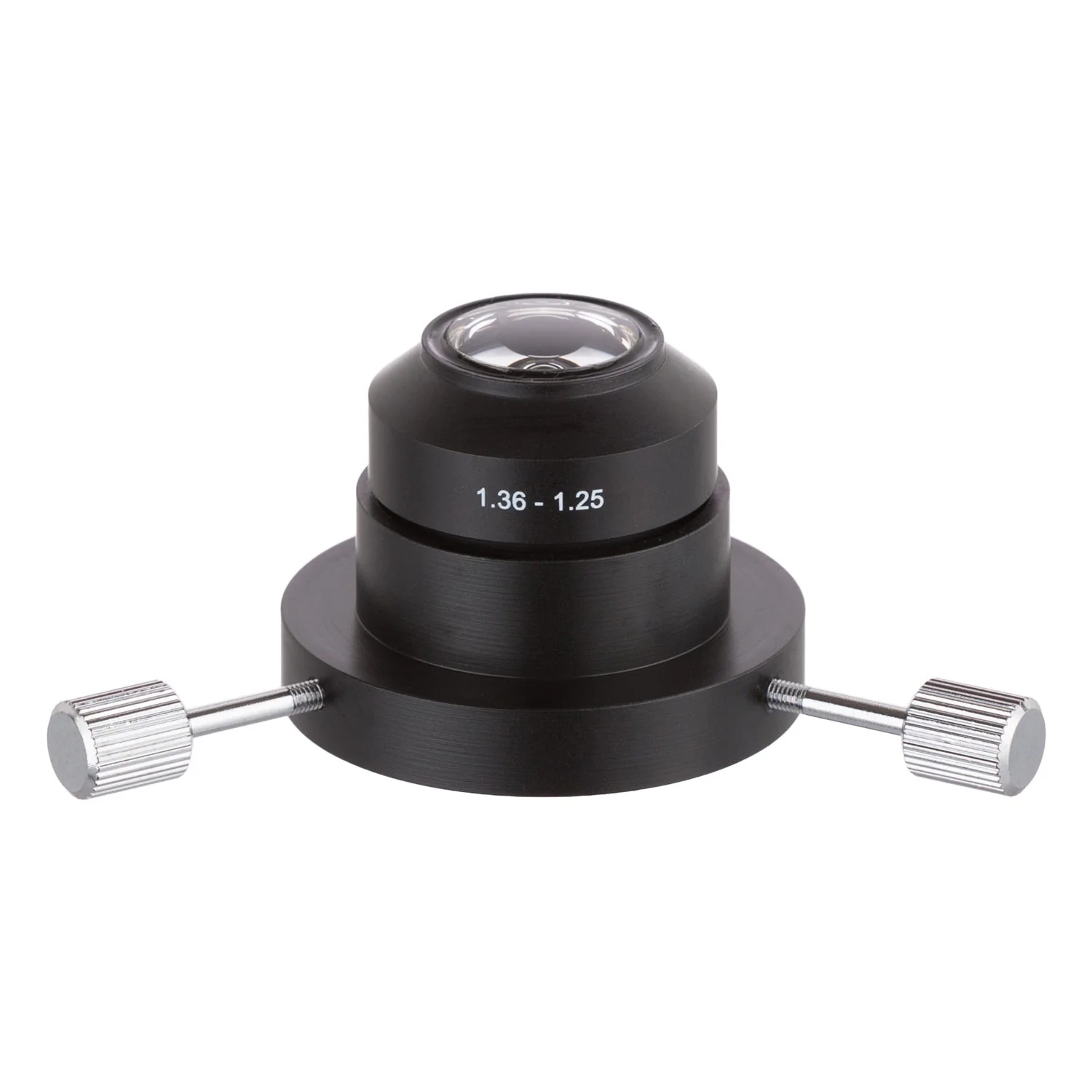

A dry darkfield condenser is included for darkfield observation using the 40X objective lens or lower. Darkfield observation will provide contrast in otherwise indistinguishable objects by highlighting changes in refractive index. This is particularly useful for observing live cells including blood analysis. With a 0.9 numerical aperture, the condenser works with non-immersion lenses. Two centering screws allow you to properly center the condenser for optimal contrast.

Specifications

Objective Lenses

Packing List:

• One trinocular head
• One microscope body
• One photo port
• Four objective lenses: 4X, 10X, 40X, 100X
• One pair 10X eyepieces
• One pair 20X eyepieces
• One dry darkfield condenser
• One oil darkfield condenser
• One power cord (UK and Europe standard)
• One dust cover
• Color filter(s)
• One sample bottle of immersion oil
