Achios-X Observer
Contact for Price
Brochure Download
Experience optimal comfort and cutting-edge performance with the Achios-X Observer, an ergonomic masterpiece featuring a state-of-the-art optical system. Tailored to meet the demands of advanced Life Science applications such as cytology and anatomopathology. This microscope stands as an unparalleled choice

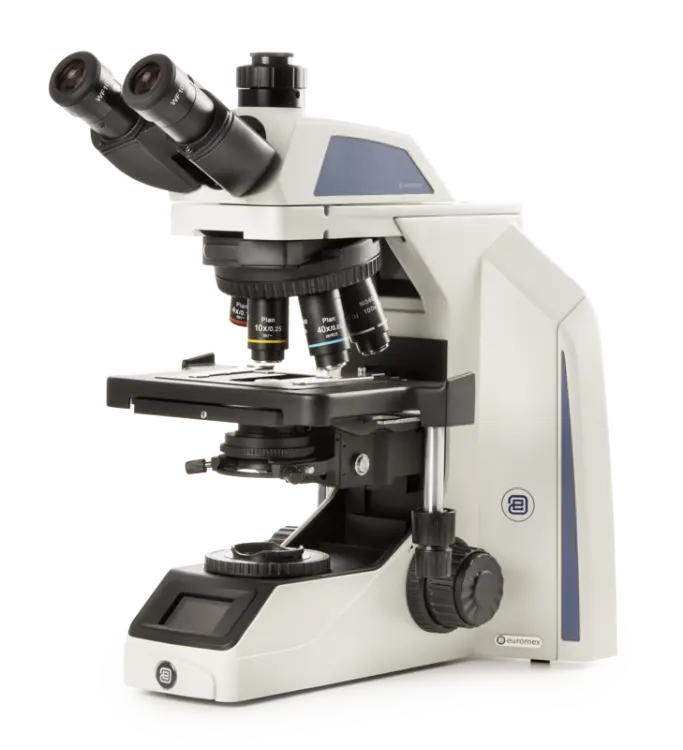

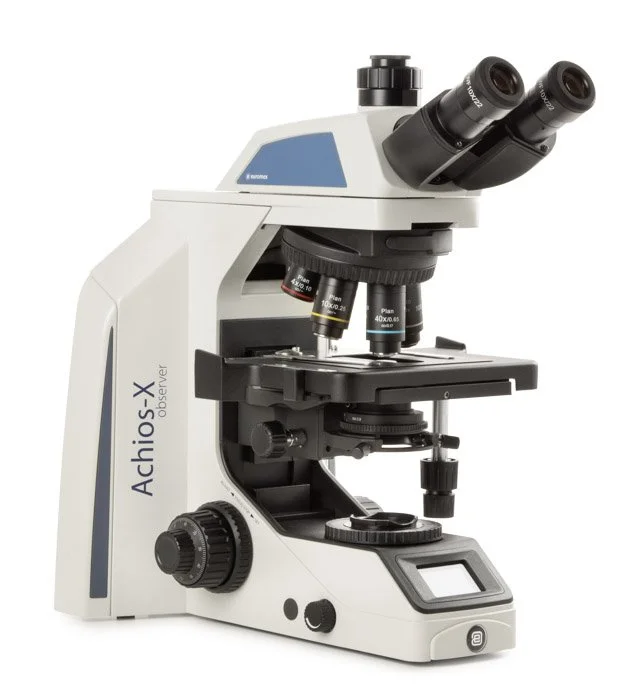

Achios-X Observer™
Experience optimal comfort and cutting-edge performance with the Achios-X Observer, an ergonomic masterpiece featuring a state-of-the-art optical system. Tailored to meet the demands of advanced Life Science applications such as cytology and anatomopathology.
Highlights
- Extra Wide field WF 10x/22 mm, Ø 30 mm tubes
- Revolving quintuple or sextuple reversed nosepiece
- Infinity corrected 60 mm achromatic Plan, Plan Phase objectives
- Plan Semi-Apochromatic EIS objectives
- Low positioned stage adjustment knobs
- 3 W NeoLED™ with adjustable color temperature
- Smart Light Control (SLC)
Models
The Achios-X Observer™ is available in multiple models for Plan, Plan Semi-Apochromatic, and Plan Phase applications.
| MODELS | Bino | Trino | Ergo | EW 10x/22 mm | Plan 4/10/40 IOS | Plan 100x(oil) IOS | Plan Semi-Apo 4/10/40 IOS | Plan Semi-Apo 100x(oil) IOS | Plan Phase 10/20/40/100x(oil) IOS |
|---|---|---|---|---|---|---|---|---|---|
| AX-1052-PLi | • | • | • | ||||||
| AX-1053-PLi | • | • | • | ||||||
| AX-1152-PLi | • | • | • | • | |||||
| AX-1153-PLi | • | • | • | • | |||||
| AX-1158-PLi | • | • | • | • | |||||
| AX-1052-APLi | • | • | • | ||||||
| AX-1053-APLi | • | • | • | ||||||
| AX-1152-APLi | • | • | • | • | |||||
| AX-1153-APLi | • | • | • | • | |||||
| AX-1158-APLi | • | • | • | • | |||||
| AX-1152-PLPHi | • | • | • | ||||||
| AX-1153-PLPHi | • | • | • | ||||||
| AX-1158-PLPHi | • | • | • |
• = Standard
Specifications
Extra Wide field WF 10x/22 mm eyepieces, Ø 30 mm tubes. Reduces the need to move the specimen.
Standard Siedentopf trinocular (30° inclined tubes), optional ergonomic 0-35° tilting head, face-to-face dual head, and multi-head systems (2, 3, or 5 heads) are available.
Infinity corrected achromatic Plan, Plan Phase, or Plan Semi-Apochromatic EIS objectives. All optics are anti-fungus treated and anti-reflection coated.
Revolving quintuple (or optional sixtuple) reversed nosepiece on ball-bearings.

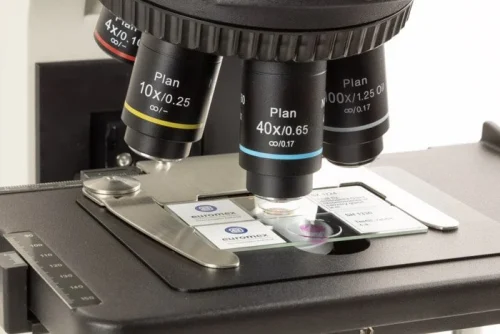

Generously sized, hard-coated, rackless mechanical stage (150 x 140 mm). Suitable for two slides. Travel range 78 x 32 mm.

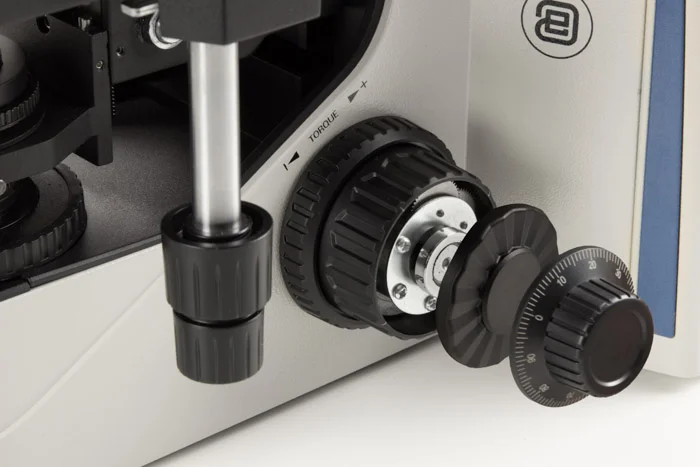

Coaxial coarse (37.7 mm/rotation) and fine (0.2 mm/rotation) adjustment with 2 µm precision. Total travel 30 mm.
Available with Standard Abbe Condenser, Zernike phase condenser, Swing-out Abbe Condenser, and Darkfield condensers (dry or oil).
3 W NeoLED™ Köhler illumination. The innovative NeoLED™ design provides high-resolution images, increased light output, and a super long life span (50,000 hrs).
This intelligent function memorizes the light intensity level for each objective. The color temperature of the NeoLED light source can be adjusted and stored, saving time and heightening comfort.
Allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage.
The integrated carrying grip at the back of the microscope ensures safe transportation.
Supplied with power cord, dust cover, screwdriver, user manual, and 5 ml immersion oil (for models with 100x objective).
